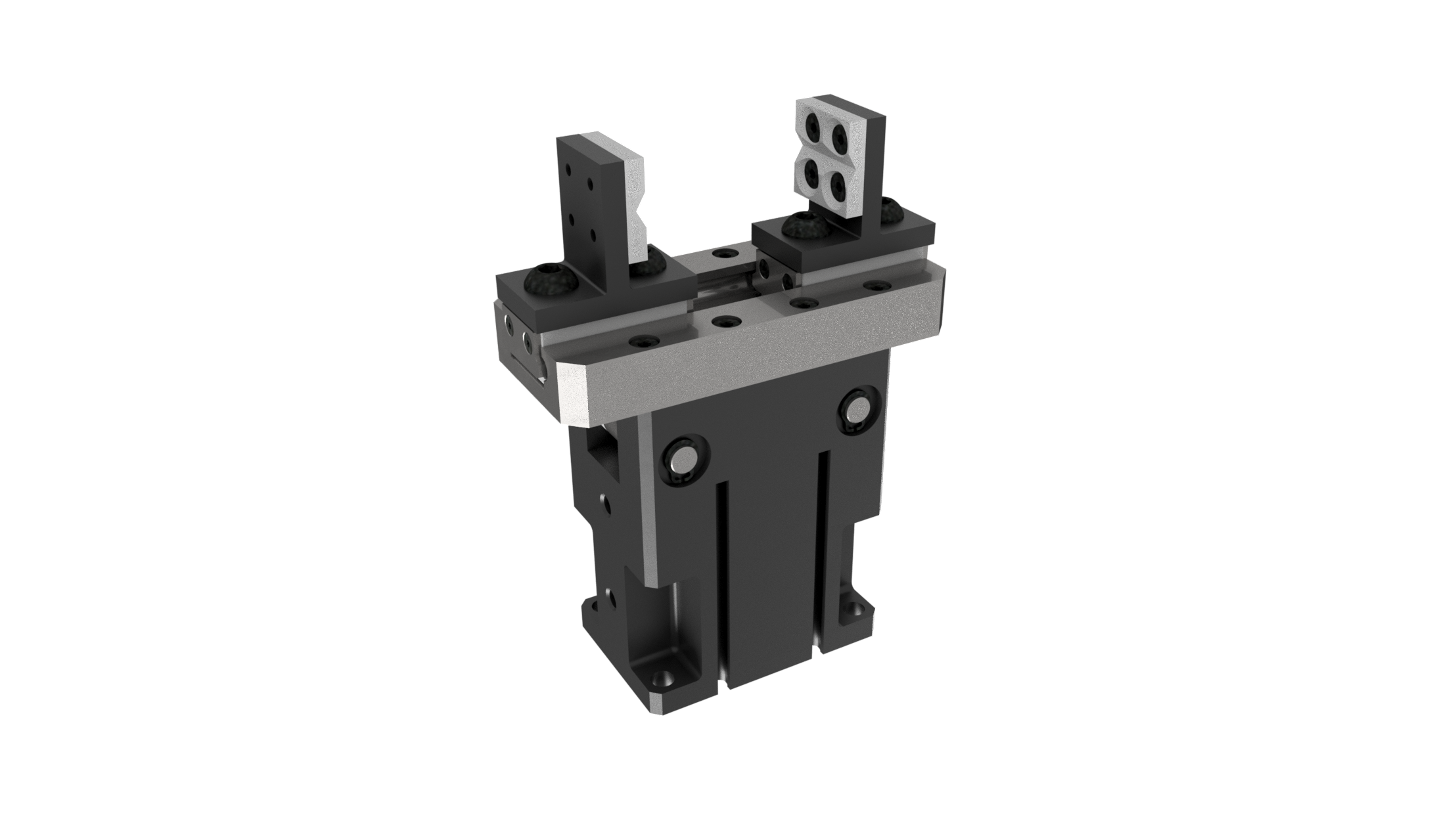

Simple rugged parallel gripper for small to medium sized robotic arms.

Grip Force: 177 N (40 lb) at .62 MPa (90 psi)

Stroke: 22mm

Weight (without adapter): .75 kg ( 1.66 lb)

Inlet/Outlet Port: 5mm x .8

Magnetic piston: Yes

Recommended additional equipment: Adapter plate, 2 x M5×4mm OD Tube Fitting

Position Sensor: Grooves in the gripper body will accept a 4mm OD cylindrical magnetic sensor such as Automation Direct PN CPS9C-AP-A or similar.
